FS View Image

Test in: Web, Insight

Purpose: View “small” images and concentrate on projection and performance.

Download both Gretzky and Howe builds and compare the speed of the workflow on the same images on Gretzky vs Howe. Test ALL “small” images pre-loaded on Gretzky and Howe, see: FS testing table

Turn on/off channels, use z-slider and t-slider and play channels movie and z/t movie.
Go to the split-view (= multi-channel in Web). Turn channels on/off, use the z and t-sliders.
Toggle back between views.
Turn on/off color/grayscale
Modify the rendering settings.
Click on Projection tab if enabled:[FSView002] - in Web, click on “Max Intensity” instead
- Preview the projection [FSView002] (Insight only)
- Change the projection range (Insight only).
- Change the projection type (Maximum or Mean - double arrow menu next to “Intensity”) [FSView003] (Insight only).
- Project the image.[FSView004][FSView005] (Insight only)
- Check the result [FSView006] (Insight; Web - the result will appear in the full viewer window after click on “Max Intensity”)
Save as (Insight only):
- JPEG, PNG - use the icon in the projection window, see [FSView007][FSView008]
- Save split channels.[FSView008]
- Save with all channels turned off.
- Check the saved files.

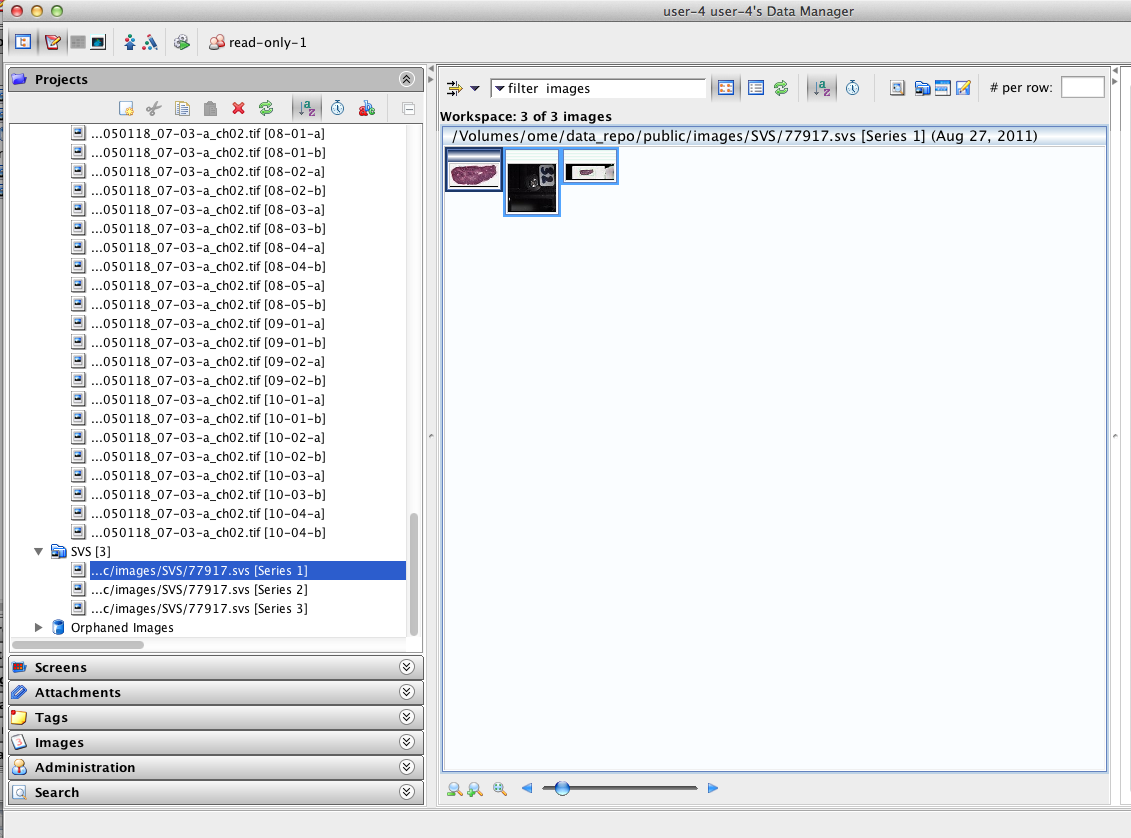

Import a multi-image fileset ( = MIF, for example lei). Select one or more image(s) of the MIF in the central pane [FSView009]
- Check that you see the other images belonging to the same MIF being indicated by a lighter highlight [FSView010, FSView011].

  FSView002

  FSView003

  FSView004

  FSView005

  FSView006

  FSView007

  FSView008

  FSView009

  FSView010

  FSView011
